Elements®座椅和替补 - 帖子

元素柱子范围可以由说明符设计为适合大多数方案的风格和预算。该范围包括一系列可互换的部件或“元素”，为您提供风格，尺寸，材料和功能的最高选择。元件后安装版本的元件支撑长椅和带圆形圆筒腿的座椅提供低调的外观，座椅平台和可定制的木材板块变化是这种高度流行的外部座位范围的主导特性。XL version is also available with extended platform depth.

PRODUCT CODES & OUTLINE SPECIFICATIONS:

	STANDARD		XL
People	Length mm	Width mm	Length mm	Width mm	高度 mm
3 person	1850	510	2015	675	450.
4 person	2450	510	2615	675	450.

Please download and complete the Elements Enquiry form for your seating specification.

MATERIALS:
Create your own Elements seat and bench from the options below in four easy steps.

Iroko timber slat尺寸（宽度）：small 40mm, medium 65mm or large 140mm
Orientation of slats:side to side or back to front
筋膜板：timber,stainless steel 304 or 316 bright/satin polished,steel (galvanised) or powder coated
Post supports:stainless steel 304 or 316 bright/satin polished,steel (galvanised) or powder coated

OPTIONS:

Iroko timber slats - UV protective finish
Backrests
Armrests
Tablet surface
Anti-skate devices
Extended posts for in-ground installation

(bespoke solutions to suit site-specific levels and ground conditions)
Rubber feet for freestanding seats (XL version only)
Perch-top to standard height backrest (XL version only)

INSTALLATION:

Post supports are pre-drilled for bolt-down installation with 4no. M10 or M12 fixings (not supplied)
An extended height post support can be supplied to allow for bolting down below the finished ground level if preferred

Product Notes

Elements® Range
Elements® is a Registered Trademark of Furnitubes International Ltd.

Design changes
We reserve the right to change the design and specification on any item offered and, where possible, notification will be made.

Back to Products List

元素2.4M座椅采用小型木板，木材舷窗，镀锌钢柱，2人靠背和扶手与木材顶部（ELES112T7676-4121RNG）
Elements 2.4m seat with small timber slats, timber fascias, galvananised steel posts, 2-person backrest and armrests with timber tops (ELES112T7676-4161KNG)

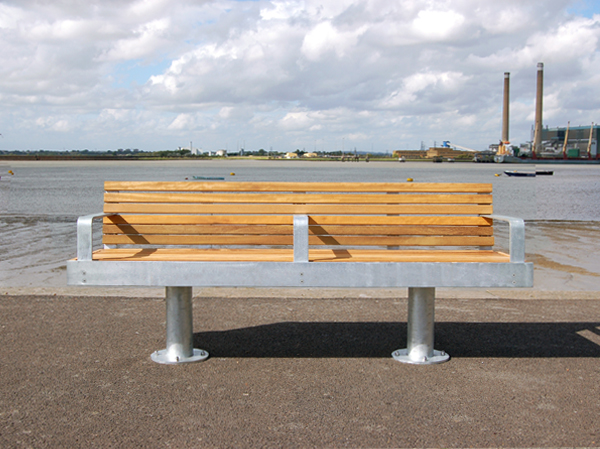

Elements 2.4m seat with small timber slats, galvanised steel fascias, galvanised steel post supports and armrests (ELES113T7676-46613NG)
Elements 2.4m seat with small timber slats, timber fascias, and powder coated steel post supports (ELES212T7777-4651KNG)

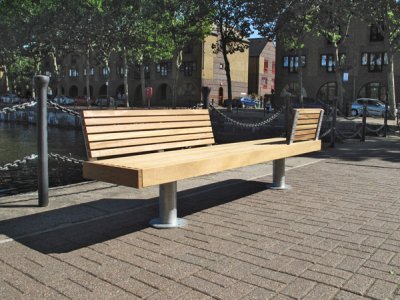

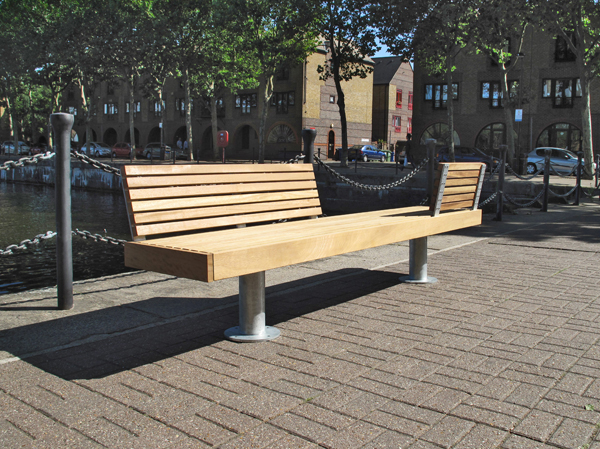

Elements 2.4m seat with small timber slats, timber fascias, galvanised steel post supports, 2-person and 1-person backrests (ELES212T7676-5251KNG)
Elements 2.4m seat with small timber slats, timber fascias, galvanised steel post supports and middle 2-person backrest (ELES212T7676-4251KNG)
元素1.8M柱柱台镀锌钢板玻璃件和防滑装置

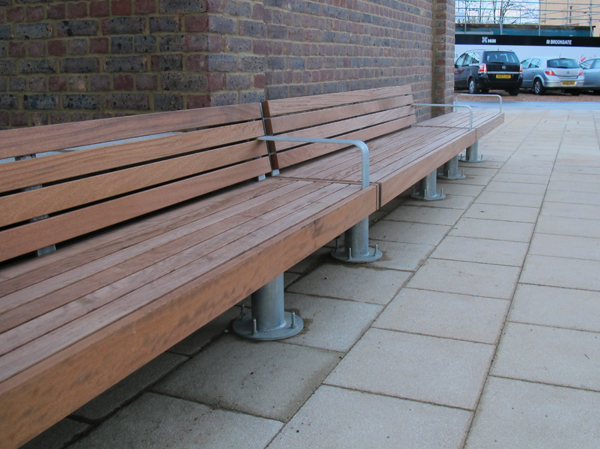

Elements seat with timber slats, timber fascia and posts support in continuous runs (special)

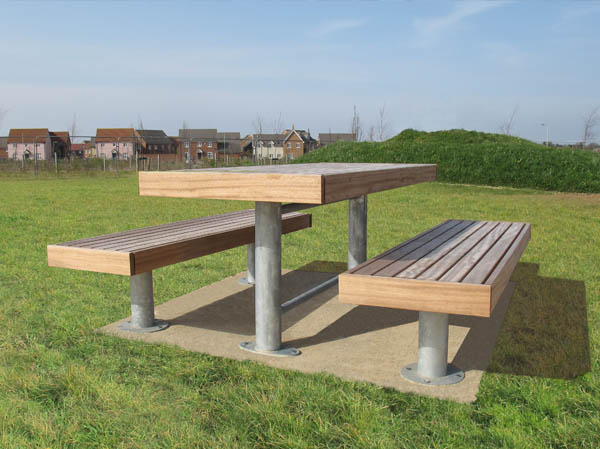

Elements 1.8m benches with medium timber slats, timber fascias, galvanised steel post supports and Elements standard table - picnic set

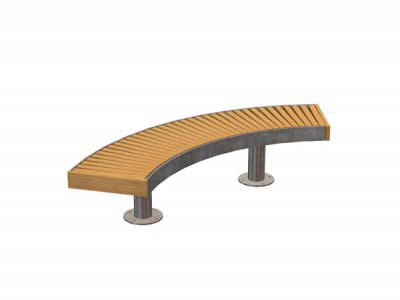

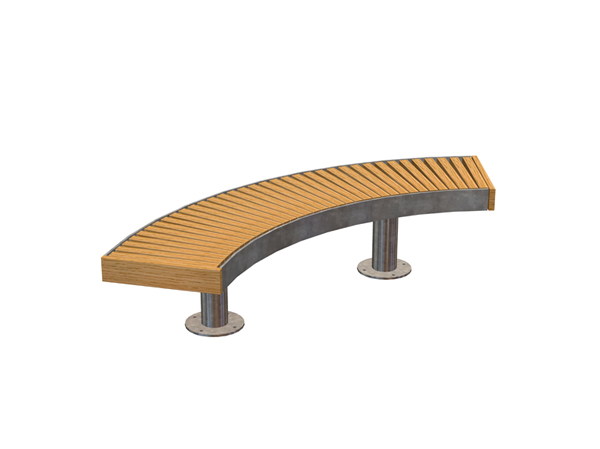

Curved Elements bench with galvanised steel fascia and posts (special)
Elements bench with combined concrete and post supports (special)

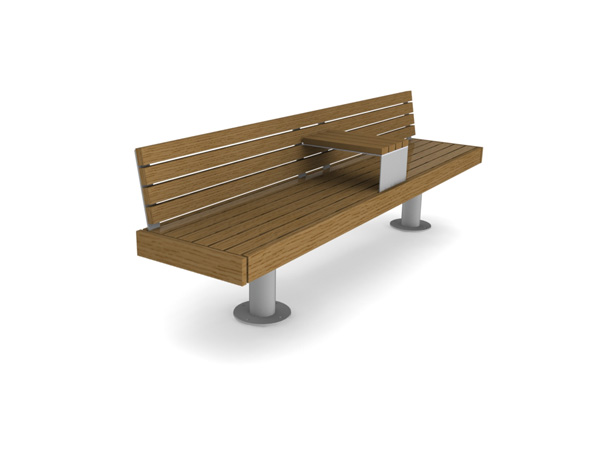

Elements 2.4m seat with timber slats, timber fascias, post supports and timber topped tablet surface (ELEM112T7676-4655KTNG)
